Hexagonal LED Display Screen
*P2.5 Hexagonal shape screen *277*160mm module *640*554mm panel
Creative&Irregular LED
Irregular and creative LED displays, customizable into various shapes for different occasions, are highly popular for their uniqueness.
Features
The irregular-shaped LED display has the following features:
1. Unique Shape: Irregular-shaped LED displays can be customized into various shapes such as spherical, cylindrical, curved, etc., to present a unique visual effect.
2. High Definition Image Quality: Irregular-shaped LED displays utilize high-density pixel arrangement, displaying high-definition image quality for a more delicate and vivid picture.
3. Flexible Installation: Irregular-shaped LED displays are lightweight and flexible, allowing easy installation in various complex scenarios.
4. Excellent Display Performance: Irregular-shaped LED displays have high brightness, high contrast, and wide viewing angles, ensuring excellent display performance in various environments.
5. Strong Impact Resistance: LED irregular-shaped screens are designed with precision structures and manufactured with special processes, making them resistant to external impact damage.
Product specifications
| Model | P2.5 Hexagonal LED display |
| Pixel pitch | 2.5mm |
| LED pixel | 1R1G1B |
| Module size | 277*160mm(Triangle/Rectangle） |
| Pixel type | Full color |
| LED type | SMD2121 |
| Pixel density | 160000 dots/m² |
| Driving IC | Constant Current Driving |
| Power supply voltage | 5V |
| Working temperature | -30℃ - +50℃ |
| Panel material | Iron |
| Panel color | Black |
| Scan mode | 1/32 scan |
| Panel size | 640*554mm |
| Cabinet resolution | 192*192 |
| Module quantity | 8 pcs |
| Brightness | 600cd/㎡ |
| Horizontal viewing angle | 140 degree |
| Vertical viewing angle | 140 degree |
| Flatness | ＜1mm |
| Module gap | ＜1mm |
| Cabinet weight | 10KG/㎡ |
| Max power/㎡ | 600W |
| Average power/㎡ | 300W |
| Refresh frequency | 3840Hz |
| Gray level | 16 bits |
| Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| Mean time between failures | >5000 hours |
| Lifetime | >100000 hours |

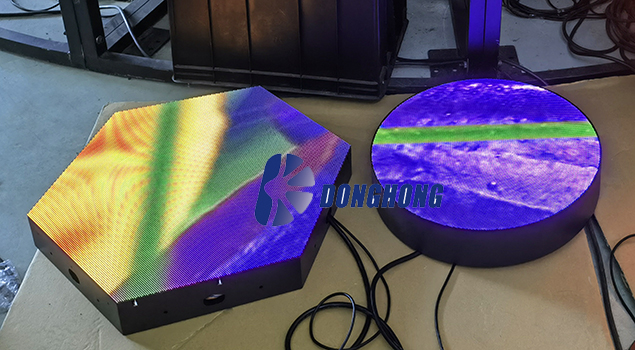

Unique Shape Customization
- Tailored designs like hexagon, triangle, spheres and curves for distinctive visual effects.

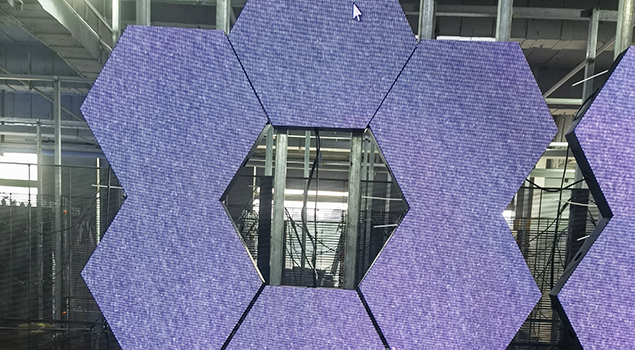

High-Definition Display
- Crisp, detailed images with high pixel density for vivid visuals.

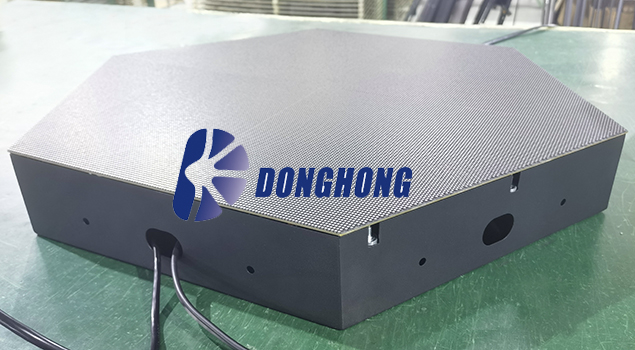

Flexible Installation
- Lightweight, bendable screens for easy setup in diverse settings.
