P6.25 Holographic LED Display

P6.25 Holographic LED Display

P6.25-6.25 Holographic LED Display Pixel Pitch: 6.25 mm Module Size: 250×1200 mm Module Resolution: 40×192

Features


The holographic LED display is an advanced transparent display solution that combines an ultra-thin, lightweight structure with flexible LED modules and holographic imaging technology. Its main features are as follows:

  1. Ultra-Thin and Highly Transparent


    The display is less than 2 mm thick and very lightweight. It offers super-high transparency and can be seamlessly attached to curved glass or irregular architectural structures. When mounted on glass, it remains nearly invisible, preserving natural light and clear sightlines.


  2. High Flexibility


    It supports customized modules and can bend to fit curved surfaces. This makes it suitable for curved glass, cylindrical surfaces, and complex installation scenarios. It also provides greater design freedom for architects, designers, and display integrators.


  3. 3D Stereoscopic Effect


    The display uses holographic imaging technology to present realistic 3D images. It creates a strong sense of depth and visual immersion without requiring special glasses. This significantly enhances visual impact for advertising, exhibitions, retail, and public spaces.


  4. Customizable Dimensions


    The LED modules can be cut and shaped according to project requirements. It supports custom sizes and forms, making it adaptable to different glass panels and architectural structures. This also helps reduce the cost of redesigning or reproducing new panels.


  5. Easy Installation and Maintenance


    The screen is adhesive-mounted and requires no additional supporting structure. Installation is fast and convenient, while removal and maintenance are simple. It can be directly adhered to glass, making it ideal for retrofitting existing surfaces.




Product specifications



ItemTechnical Parameter
ModelP6.25 Holographic LED Screen
Physical Pitch6.25mm
Pixel Configuration1R1G1B
Module Size1000250mm/1500250mm
LED Lamp Packaging TypeSMD Lamp-Driver Separation
Pixel Density (dots/㎡)25600
Pixel TypeFull Color
Module Pixel Count16040/24040
Scanning Method16-scan
Driver ICConstant Current Driver, Risk Source 353
Power Supply Voltage5V
Operating Temperature-30℃ - +50℃
Screen Body MaterialProfile Aluminum
Screen Body ColorBlack/Silver/White
Screen Body SizeCustomized
Screen Body ResolutionCustomized
Module QuantityDetermined by on-site size
White Balance Brightness800-5000cd/㎡
Transmittance65%
Horizontal Viewing Angle140 degree
Vertical Viewing Angle140 degree
Flatness<1mm
Module Gap<1mm
Cabinet Weight4.5KG
Maximum Power Consumption/㎡800W
Average Power Consumption/㎡400W
Frame Rate≥60Hz/s
Refresh Frequency3840HZ
Gray Level14 bits
Input SignalRF, S-video, RGB, RGBHV, YUV, YC&Composition, etc.
Mean Time Between Failures (MTBF)>5000 hours
Service Life>100000 hours


Advantages


1. Powerful visual appeal: The unique visual effects of holographic LED display screens possess powerful visual appeal, making them highly suitable for applications in marketing, advertising, and entertainment industries, among others.

2. Interactivity and engagement: Holographic LED display screens can interact with audiences through gesture recognition or touch interaction technology, greatly enhancing user engagement.

3. Versatility: These display screens can be widely used in various settings, including retail stores, exhibition halls, museums, and various large-scale event venues. They can showcase products and other information with unique visual effects.

4. Scalability: The size of holographic LED display screens can be adjusted to accommodate different spatial requirements, ranging from small installations to large display screens.

Holographic LED display screens offer an innovative and engaging way to present content, with their ability to create mesmerizing 3D holographic images and videos while providing transparency, high brightness, wide viewing angles, and interactive features.

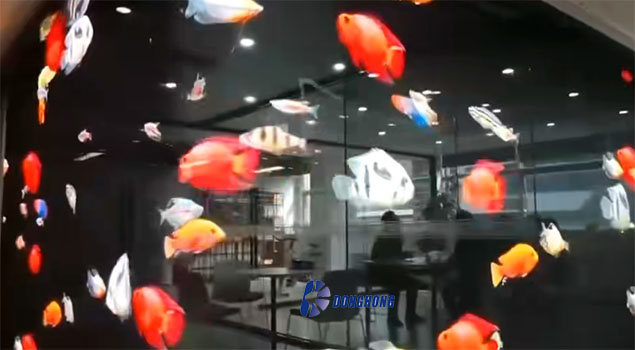

Immersive 3D holographic imagery

Immersive 3D holographic imagery

    It delivers realistic 3D imagery through holographic imaging technology, enhancing visual immersion.

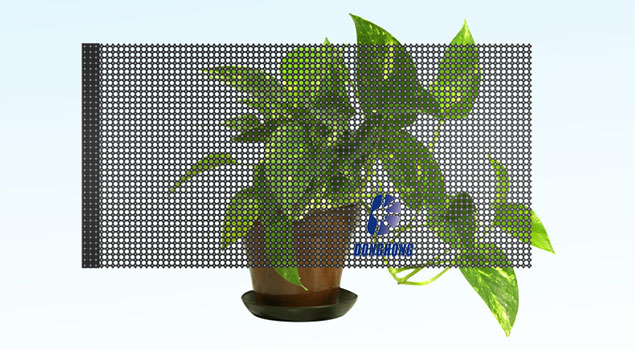

Ultra-Thin and Highly Transparent

Ultra-Thin and Highly Transparent

    The screen is less than 2 mm thick and lightweight, allowing seamless adhesion to curved glass or irregular architectural structures.

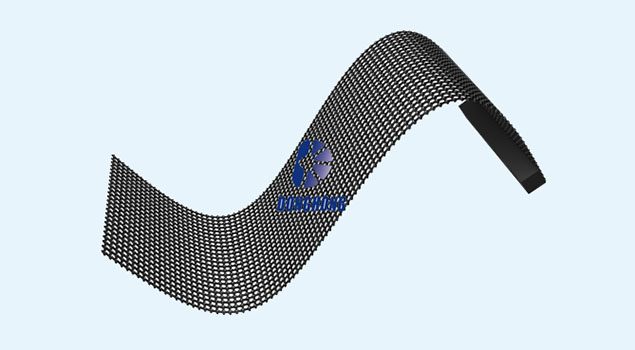

High Flexibility

High Flexibility

    It supports customized modules and can be bent, making it suitable for curved glass and complex installation scenarios.

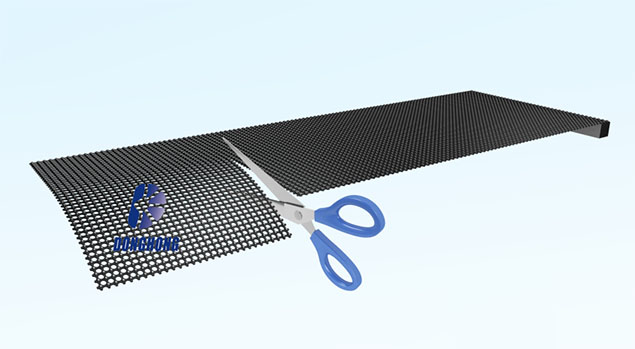

Customizable Dimensions

Customizable Dimensions

    Modules can be cut to size and customized in shape, reducing the cost of panel redesign and reproduction.

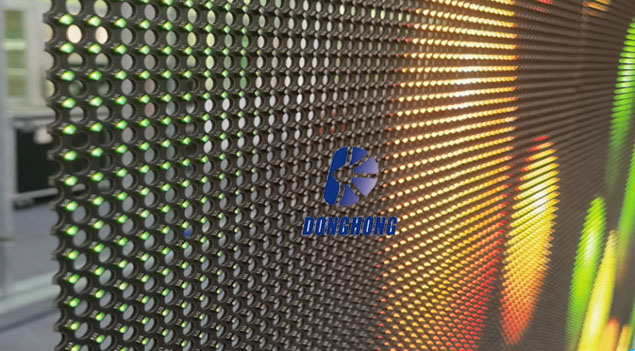

Easy Installation and Maintenance

Easy Installation and Maintenance

    The screen is adhesive-mounted without requiring additional structures, enabling quick installation and convenient removal.
