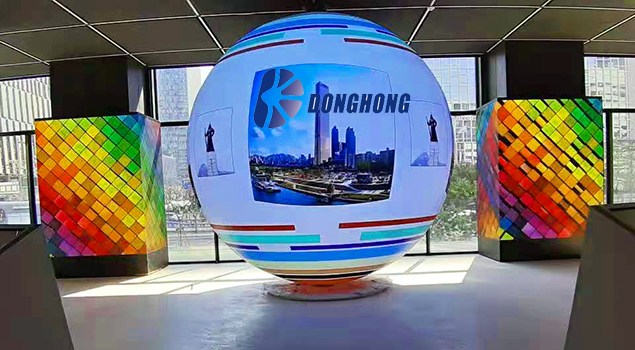

Spherical LED Display Screen
*Spherical shape *Customized module size *Diameter 2 meters or customized
*Spherical shape *Customized module size *Diameter 2 meters or customized
Features
Features of the spherical LED display:
- Suitable for indoor and outdoor use, with transparency, large pixel spacing, and decorative effects for large screen displays.
- Special display units can be assembled into various unique shapes, achieving effects beyond conventional displays.
- Pixel front side sealed with silicone for brightness in outdoor settings, ensuring waterproofing and color coordination with building exteriors.
- Utilizes high-quality silicone wires for temperature resistance, professional waterproof connectors, and IP67 protection for indoor and outdoor environments.
- Uses bar-shaped display units for strong visual impact and high safety.
- Provides a 360-degree viewing angle, enabling full video playback without the viewing angle limitations of flat LED screens.
- Supports full-color display through serial or parallel connection, clear video playback, and synchronous or asynchronous control for full-color video display.
- Equipped with a professional audio-video processing system, supporting various external signal inputs for live broadcasting.
- Customizable diameter with CNC precision for consistent spherical curvature, lightweight design for mobile stages in the rental industry.
- Easy to use without installation upon delivery.
- Lightweight, wind-resistant, easy to install, good heat dissipation, convenient maintenance, waterproof, shock-resistant, low-cost auxiliary installation frame, silent operation without fans.
- Features an all-aluminum structure design like rental LED displays, offering lightweight and sturdy construction with customizable installation methods.
- Tailored solutions based on customer requirements and site conditions for the most suitable spherical LED display solution.
Product specifications
| Model | Spherical LED display |
| Pixel pitch | 1.86mm |
| LED pixel | 1RGB |
| Module size | Customized |
| Pixel type | Customized |
| LED type | SMD2121 |
| Pixel density(dots/m²) | 111111 |
| Driving IC | Constant Current Driving |
| Power supply voltage | 5V |
| Working temperature | -30℃ - +50℃ |
| Panel material | Iron |
| Panel color | Black |
| Scan mode | 1/32 scan |
| Panel size | Diameter 2m |
| Panel resolution | 1920*928 |
| Module quantity | 321 pcs |
| Brightness | 300~1000cd/㎡ |
| Horizontal viewing angle | 360 degree |
| Vertical viewing angle | 360 degree |
| Flatness | <1mm |
| Module gap | <1mm |
| Cabinet weight | 500kg |
| Max power/㎡ | 800W |
| Average power/㎡ | 320W |
| Refresh frequency | 3840Hz |
| Gray level | 16 bits |
| Input signal | RF,S-video,RGB,RGBHV,YUV,YC&Composition,etc |
| Mean time between failures | >5000 hours |
| Lifetime | >100000 hours |
Customizable shapes, flexible modules, immersive experience

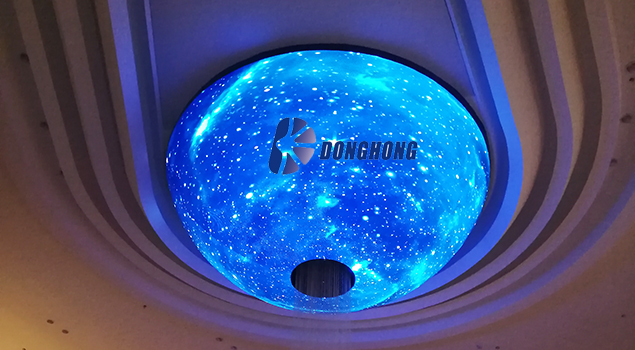

Pot cover shape, customized size, flexible module
Customized shape, size and structure, unique design, flexible installation
Customized size, seamless splicing, flexible structure

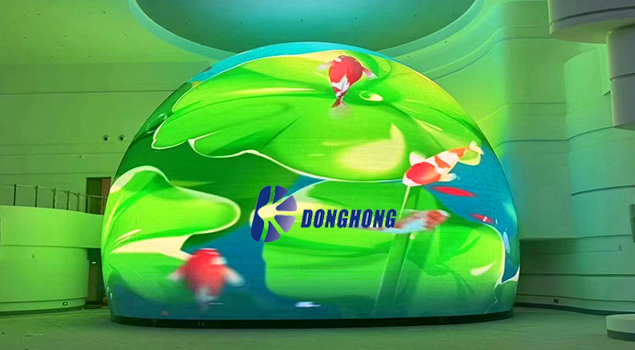

Hemispherical shape, immersive viewing experience, inside display
Hexagonal shape screen, 277*160mm module, 640*554mm panel
